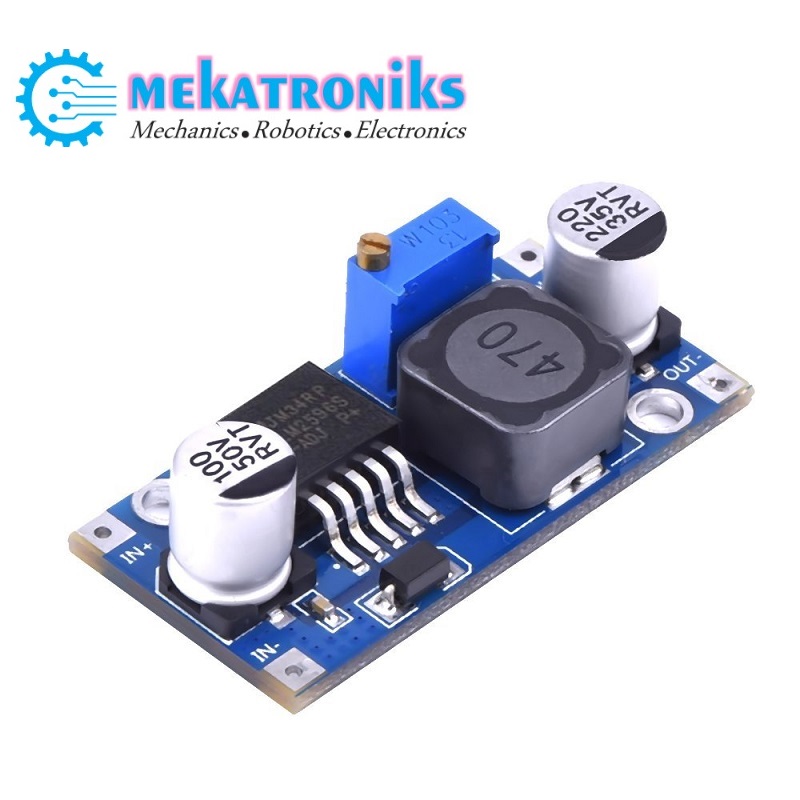

LM2596 DC To DC Step Down Buck Converter In Pakistan

Output ripple: 30mA maximumLoad Regulation: ± 0.5%Voltage Regulation: ± 0.5%Dynamic Response speed: 5% 200uSInput voltage:4.75-35VOutput voltage:1.25-26V(Adjustable)Output current: Rated current is 2A, maximum 3A(Additional heat sink is required)Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)Rectifier: Non-Synchronous RectificationModule Properties: Non-isolated step-down module (buck)Short Circuit Protection: Current limiting, since the recoveryOperating Temperature: Industrial grade (-40 to 85 ) (output power 10W or less)Non-isolated step-down (BUCK) switching regulator.Short circuit protection: Current limiting, self-recoveryPotentiometer adjustment directionNon-synchronous rectificationModel name: DC-DC LM2596S buck moduleInput voltage:3.2V~46V (recommended for use in 40V)Output voltage:1.25V~35VOutput current:3A (maximum)Conversion efficiency:92% (highest)Output ripple:<30mVSwitching frequency:65KHzWorking temperature:-45 ~ 85en.wikipedia.orgDimension:21mm * 43mm * 14mm (length * width * height)1x LM2596 DC To Dc Buck Converter Step Down Module Power Supply in Pakistan
