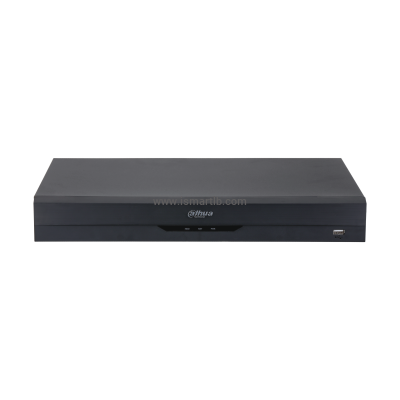

DAHUA XVR 32 CHANNEL 5MP DH-XVR5232AN-I3

System Main Processor Industrial-grade processor Operating System Embedded Linux Operating Interface Web; Local GUI Perimeter Protection Perimeter Performance AI by Recorder (Number of Channels) Advanced Mode: 2 channels, 10 IVS rules for each channel General Mode: 4 channels, 10 IVS rules for each channel Face Detection Face Attributes 6 attributes Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images/s each channel) Face Recognition Face Database Capacity Up to 10 face databases with 10,000 images. Face Recognition Performance of AI by Recorder (Number of Channels) 2 channels SMD Plus SMD Plus by Recorder 32 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change SMD Plus by Camera 40 channels AI Video Quality Analytics AI Video Quality Analytics by Recorder 32 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white Scene Changing Scene Changing by Recorder 1 channel Irregular Black Block Masking Irregular Black Block Masking by Recorder 1 channel Audio and Video Analog Camera Input 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect Camera Input 1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. IP Camera Input Up to 40 channels of IPC access 8 IP channels by default 32 channels (analog channels are converted to IP channels) incoming bandwidth: 160 Mbps, recording bandwidth: 160 Mbps and outgoing bandwidth: 160 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection cannot be used. Encoding Capacity Main stream: 5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1 fps-12 fps) 5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: D1/CIF@(1 fps–15 fps) Dual-stream Yes Video Bit Rate 32 kbps–6144 kbps Audio Sampling 8 kHz, 16 bit Audio Bit Rate 64 kbps Video Output 1 HDMI, 1 VGA, 1 TV HDMI : 3840 × 2160,1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. Multi-screen Display 1/4/8/9/16/25/36 Third-party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF Compression Standard Video Compression AI Coding; Smart H.265 ; H.265; Smart H.264 ; H.264 Audio Compression G.711a; G.711u; PCM Network Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) Mobile Phone Access iOS; Android Interoperability ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK Browser Chrome; IE; Safari; Edge; Firefox Recording Playback Record Mode General; alarm; motion detection; intelligent; POS Recording Playback 1/4/9/16 Backup Method USB device and network Playback Mode Instant playback; general playback; event playback; tag playback; smart playback Storage Disk Group Yes Alarm General Alarm Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline Intelligent Alarm Face detection; face recognition; perimeter protection; SMD Plus Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email Ports TV Output 1 channel Audio Input 1-channel RCA 32-channel BNC (Coaxial Audio) Audio Output 1-channel RCA Two-way Talk Yes (share the same audio input with the first channel) Disk Interface 2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature. RS-485 1 USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) HDMI 1 VGA 1 Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45) General Power Supply 12 VDC, 5 A Power Consumption <17 W (without HDD) Net Weight 1.98 kg (4.36 lb) Gross Weight 3.15 kg (6.94 lb) Product Dimensions 375.0 mm × 289.6 mm × 53.0 mm(14.76" × 11.40" × 2.09") (W × D × H) Packaging Dimensions 433.0 mm × 141.0 mm × 366.0 mm(17.05" × 5.55" × 14.41") (W × D × H) Operating Temperature –10 °C to 55 °C ( 14 °F to 131 °F) Storage Temperature –20 °C to 60 °C (–4 °F to 140 °F) Operating Humidity 10%–90% (RH), non-condensing Installation Desktop Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B Download
